3D Robotics MinimOSD Rev. On Screen Display Board for Pixhawk / APM 2.6

Item Condition: New

$99.00 USD
$40.00 USD
 per
Shipping calculated at checkout.
Spend $75.00 to FREE SHIPPING
  • Sku: 3DRSCRNDISPLYEUSSHOP
  • Barcode: 858566005362
  • Vendor: 3D Robotics

Product description

Short Description
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
FTDI cable compatible pinout
Standard 6-pin ISP header
Two independent power sections with an LED indicator on each
Solder jumpers for combining the power sections
+5V 500mA regulator for up to +12V supply input
Solder jumper for PAL video option

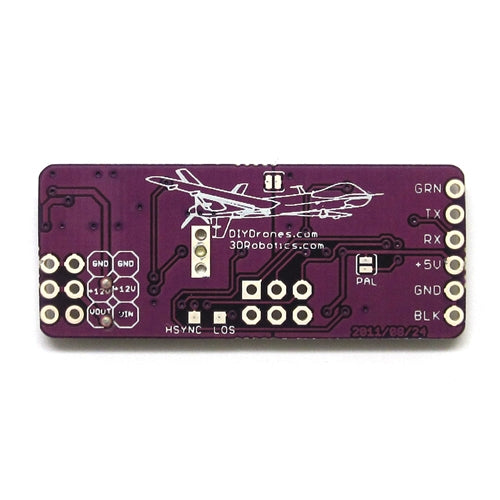

Exposed test points for HSYNC and LOS
Dimensions: 0.7"W x 1.7"L (2.4" w/ pins as shown) x 0.3"H



In The Box

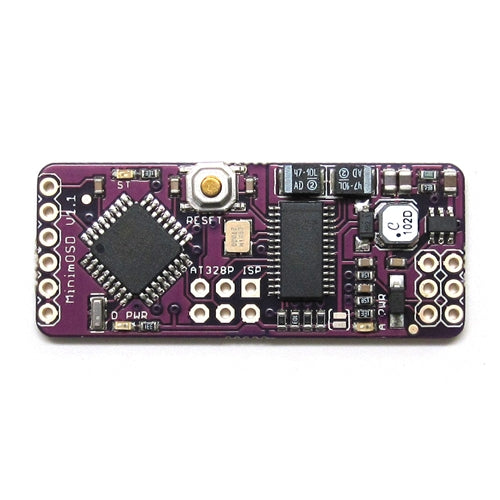

3D Robotics MinimOSD Rev. On Screen Display Board for Pixhawk/APM 2.6



Long Description

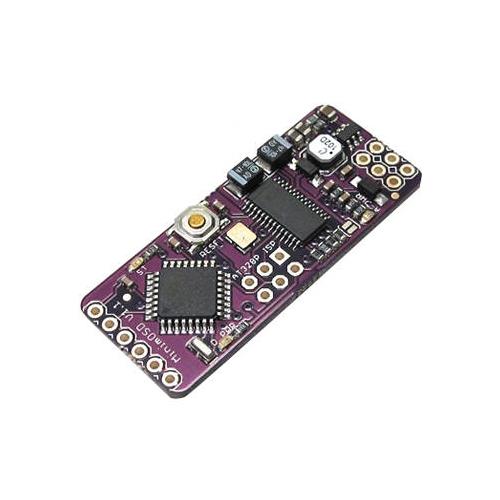

MinimOSD, an Arduino-based on-screen display board.

It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as compact as possible. It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI-compatible 6-pin cable.

It features two independent power and ground sections to isolate the OSD's analog stage: a +5V section for the ATmega and the OSD's digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD's analog stage, powered through the video in/out header and capable of handling up to +12V input. Solder jumpers are available to combine the two power and ground sections if desired.

Starting on 4/30/2012, all boards are version 1.1, which reflects a change in the voltage regulator to deal with excessive heating issues.
